Independent Solar Street Light Series “Environment improving type box”

LED street light (Registered design: No. 1429249)

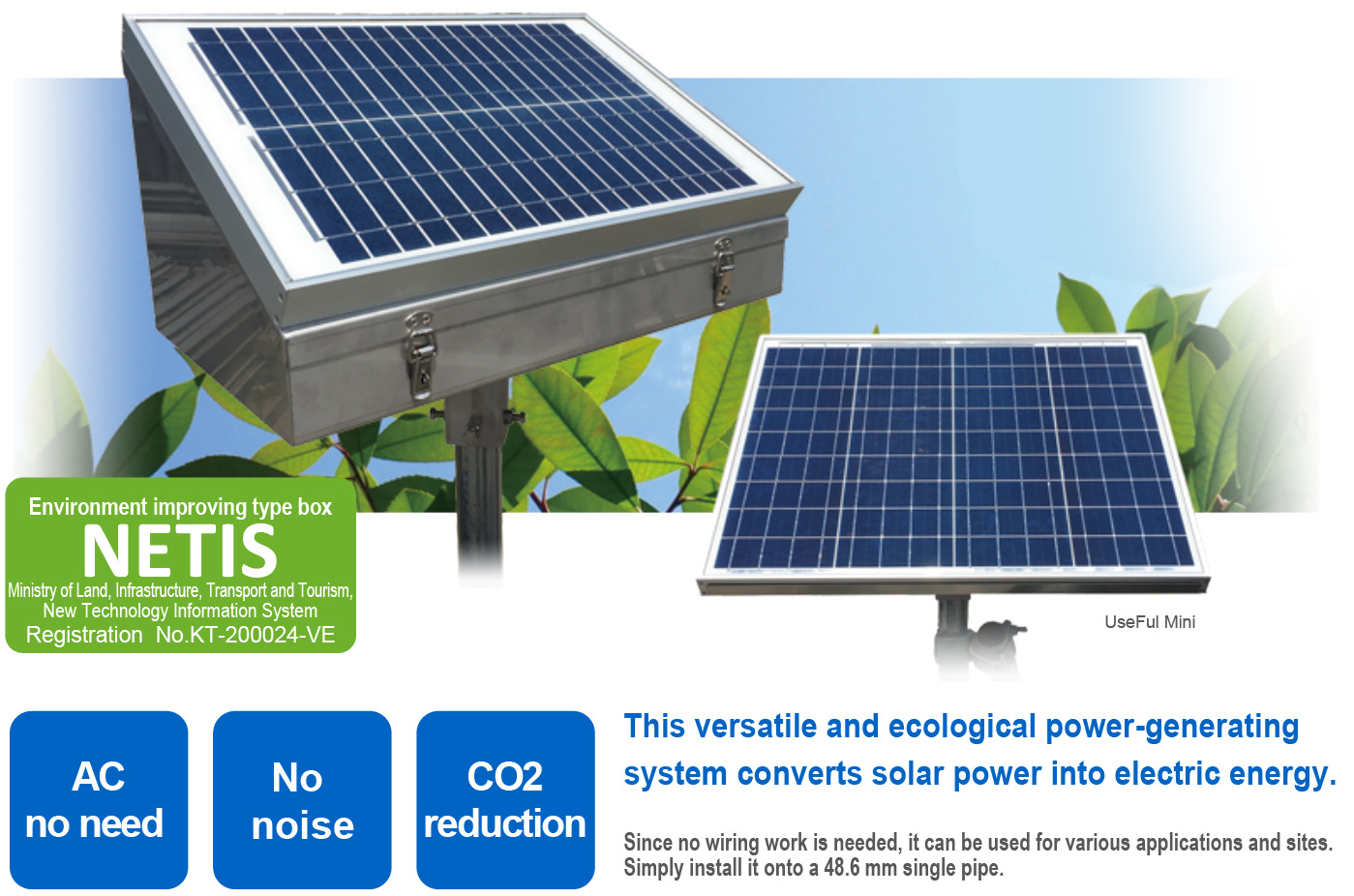

This versatile and ecological power-generating system converts solar power into electric energy. Since no wiring work is needed, it can be used for various applications and sites. Simply install it onto a 48.6 mm single pipe.

Select from five types

image of the LED Lighting type

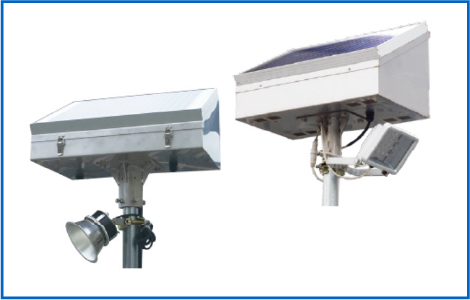

LED Lighting

Ideal street light for roads and sites

  • Operates for three days even without sunshine (On for 10 hours/day)
  • Lighting time can be set freely
  • Light can be turned on and off even during daylight hours
image of the LED Rotary Light type

LED Rotary Light

Suitable for various applications

  • Operates for three days even without sunshine (On for 10 hours/day)
  • One lamp color can be selected from red, yellow, blue, or green
image of the HDD Wireless Security Camera type

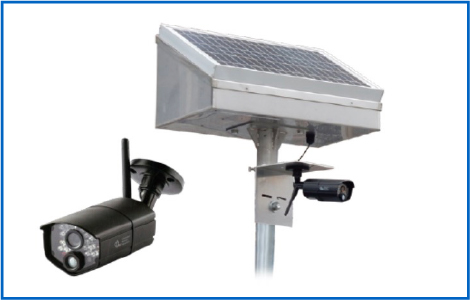

HDD Wireless Security Camera

Suitable for monitoring current situations and providing security

  • Operates for two and a half days even without sunshine (On for 24 hours/day)
  • Live surveillance is possible with Wi-Fi system
  • microSD card max. 200GB supported
  • Automatic overwrite recording possible (VGA 250 h, HD: 200 h)
image of the G-Cam02K

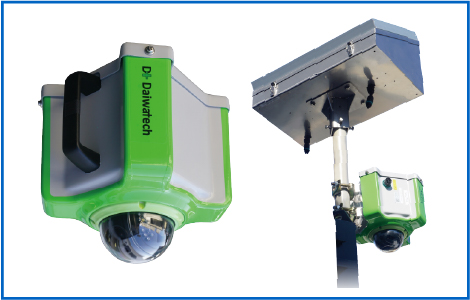

G-Cam02K

Security camera with built-in communication device

NETIS register product, No. KT-170076-VE

G-Cam02K info >>

image of the D+CUBE

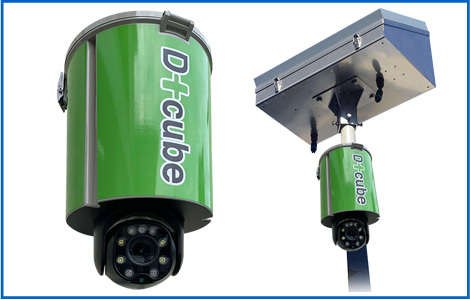

D+CUBE

Security camera with built-in communication device D+CUBE info >>

Main unit

ControllerCharging and discharging management / backflow prevention
Charging control methodPWM
Storage battery typeSealed battery
No-sunshine guaranteeVaries by the selected model
Product materialStainless steel
Operating temperature０ to +４0℃

Components

Nominal maximum output20W
Module typePolycrystalline silicon cell
Frame materialAluminum

UseFul Mini

No longer worry about insufficient power generation or storage

Simply connect UseFul Mini to a solar-powered street light to generate up to 2.5 times more power.

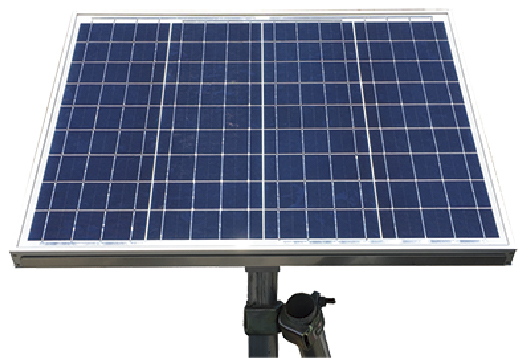

appearance of the UseFul Mini

UseFul Mini can be used according to your operating environment.

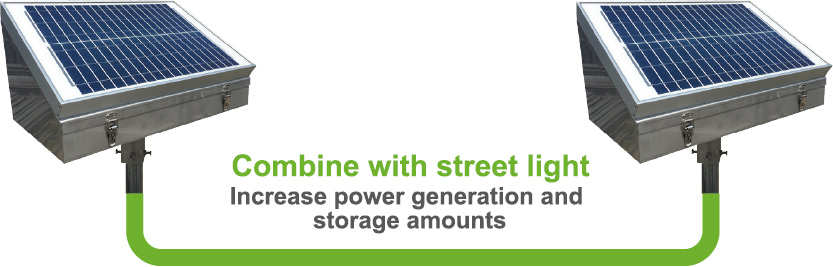

Combine with street light, Increase power generation and storage amounts

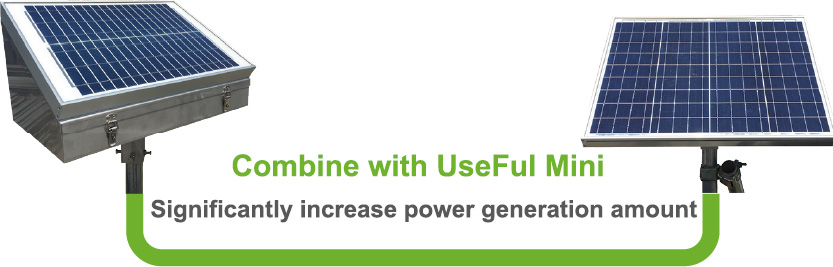

Combine with UseFul Mini, Significantly increase power generation amount

Components

Nominal maximum output50 W
Module typePolycrystalline silicon cell
Product materialStainless steel

Registered with the Ministry of Land, Infrastructure, Transport and Tourism’s New Technology Information System

NETIS, environment improving type box, Ministry of Land, Infrastructure, Transport and Tourism NETIS registered product No. KT-200024-VE

The New Technology Information System (NETIS) is a database managed by Japan’s Ministry of Land, Infrastructure, Transport and Tourism, accessible via both intranet and the Internet. This system collects and publishes information about cutting-edge technologies developed by private companies to address various challenges public works projects face, making it available online for searching.
Technologies are designated with evaluations based on their effectiveness; the system aims to promote the use of beneficial new technologies.
The independent solar street light series “Environment improving type box” is registered in NETIS.

* The detailed specifications of the product are subject to change.

Download

Environment improving type box, Field Surveillance Camera Series "G-cam02K", and Field Surveillance Camera Series "D+CUBE"
“Environment improving type box”
G-cam02K
D+CUBE
