D+CUBE

Field Surveillance Camera Series CUBE

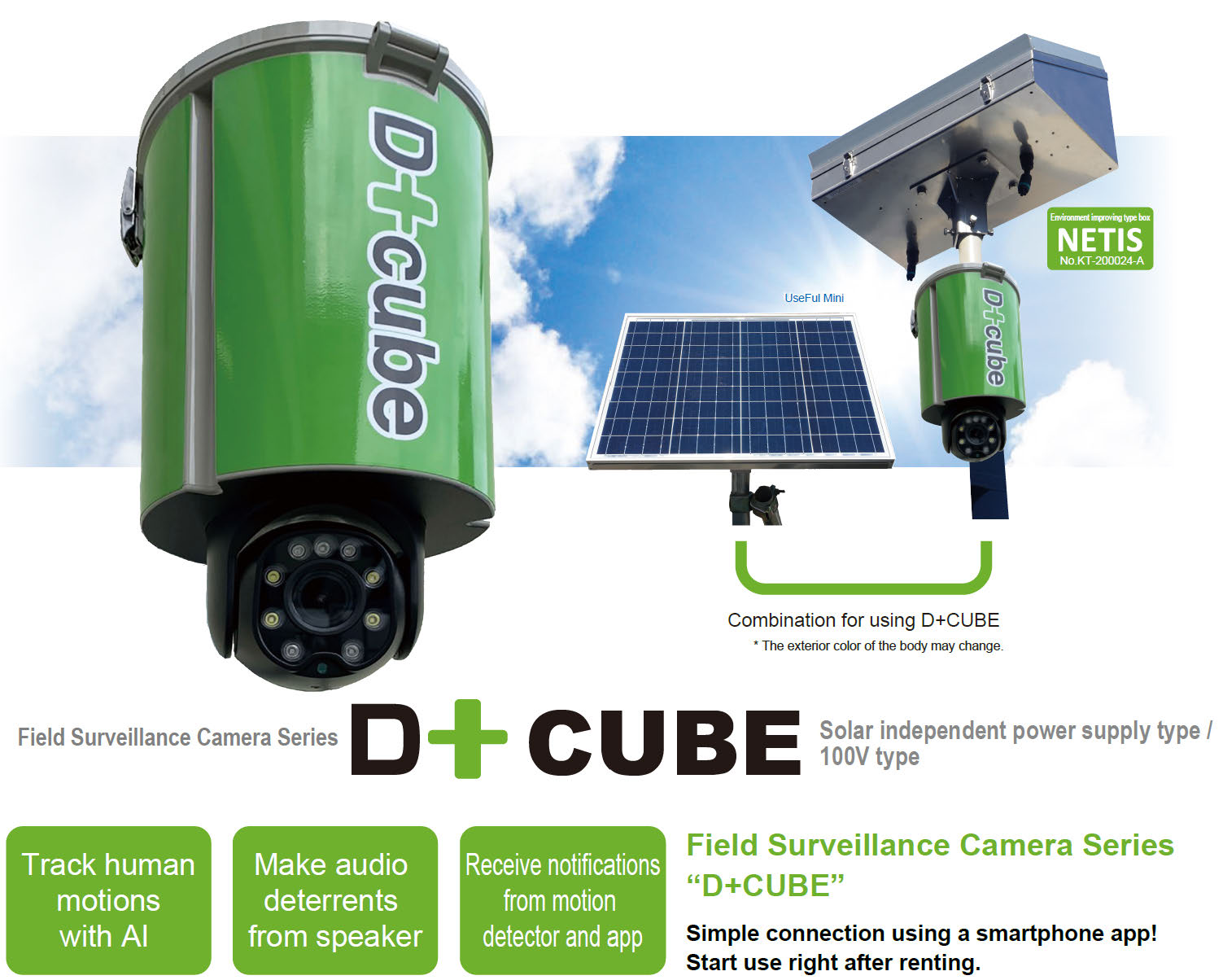

D+CUBE, Solar independent power supply type / 100V type. Field Surveillance Camera Series “D+CUBE”; Simple connection using a smartphone app! Start use right after renting. Track human motions with AI, Make audio deterrents from speaker, and Receive notifications
from motion detector and app

D+ CUBE features

  • Built-in infrared ensures surveillance even in the dark!
  • Easily install with a clamp!
  • Internet environment not required!
  • Monitor remotely from your smartphone or PC!
  • Automatic infrared switching at night
  • LED lights up when motion is detected at night
  • Automatic backlight correction
  • Digital noise reduction
  • High-speed communication (unlimited)
image of alarm

Power Supply

Outer appearance of the solar power house

Power supply for solar power house

Installation image of the Independent power supply with solar power storage

Independent power supply with solar power storage specifications

D+CUBE specifications

Pan-tilt-zoom controlHorizontal direction: 355°
Vertical direction: 90°
Zoom: 5× optical zoom
Resolution2 megapixel
Image sensor2MP 1/3 SC2232H CMOS
Automatic exposure control, automatic white balance, automatic amplification control, automatic brightness control
Light sensitivity0.001 Lux (F1.4, AGC ON)
0 Lux (Infrared)
* Automatic illumination control (Infrared is automatically turned on in low-light environments depending on the setting.)
microSD cardmicroSD card 128GB built-in
AudioBuilt-in microphone and speaker
Motion detection alarmDetection range settable
(Sensitivity can be set between 1 and 100)
AIAutomatic human detection and tracking function
AlertPhotos and images saved on SD card
Warning message sent to app
Automatic warning sound
Power consumption10 W or less
Weight3.0 kg

* The detailed specifications of the product are subject to change.

Camera viewing software

“HiP2P Client” camera application for Windows PC (16.0MB exe file) (2/6/2024 UPDATE)

Do not designate the desktop as the installation location.
Data on the desktop may be damaged.

File and instructions for MP4 conversion using the “HiP2P Client” camera application for Windows PC

“CamHi” application for smartphones and tablets

If you cannot use a QR Code:

Please search for “Cam Hi” in Google Play Store if you are using Android, or in the App Store if you are using iOS, and download it.

Camera Manuals

Application operation

Download link of the HiP2P Client User Manual ver. 1.00
download link of the D+CUBE User Manual ver. 1.10
