These houses are ideal for temporary offices at construction and civil engineering sites, headquarters bases, and evacuation shelters in times of disasters or emergencies, as well as temporary offices for events and meetings, mountain huts, or beach huts. When used as rest areas or waiting rooms for workers in agriculture, forestry, or fishery industries, these houses help ensure the safety of workers and prevent workplace accidents such as heatstroke.
3days
These houses can be powered for three days under normal conditions, even without sunlight.
eco
The use of natural energy reduces CO2 emissions.
useful
The house is useful during disasters as no commercial power or generator is required.
wave
Using the same waveforms as power companies ensures the reliable operation of personal computers.
size
11.57 m2 type
cost
Reduce costs and construction time since no electrical work is needed.
Safe and quick, simple house—no electrical work is needed, so start using right after installation
Interior The inside of the house is equipped with air conditioning, adjustable louvers, carpets, and LED lighting. Begin use immediately after installation.
Wash basin A wash basin, with a mirror and sink, is provided.
Toilet The Western-style toilet is equipped with a bidet.
Functions and Equipment
Display unit (LCD screen)
The display unit features a 5.7-inch color LCD screen.
It shows messages when the remaining battery capacity drops to 20% and 5%, respectively. All power supplies can be turned off to conserve electricity.
The display indicates the power storage amount (%), power generation (kW), and power consumption (kW).
LED sign panel
The sign features a thin design and a clean frame shape.
It is suitable for posting announcements and as a signboard.
At night, it automatically turns on with a timer setting. It also serves as lighting for hands and feet during disasters.
House specifications / Electrical specifications
| Construction | Angular steel tubes, lightweight structural steel |
| Outer dimensions | 5,400(W)×2,100(D)×2,550(H) (including solar panels) |
| Surface area | 10.78 m² |
| Weight | 1.98 t (including solar panels) |
| Equipment | Air conditioner, LED lighting, ventilator, ventilation port, breaker, wall outlet, louvers, carpet, LED sign panel, modular jack for LAN connection |
| Maximum solar panel output | 2.16 kW |
| Average expected daily power generation | Approx. 6.4 kWh (summer)/approx. 4.3 kWh (winter) |
* The detailed specifications of the product are subject to change. Contact the Daiwatech Sales Department for more information.

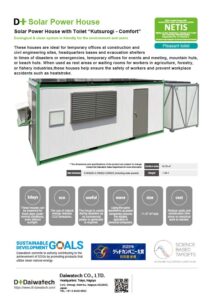

Download
“Kutsurogi – Comfort”
