3days
These houses can be powered for three days under normal conditions, even without sunlight.
eco
The use of natural energy reduces CO2 emissions.
useful
The house is useful during disasters as no commercial power or generator is required.
wave
Using the same waveforms as power companies ensures the reliable operation of personal computers.
size
6.6 m2 size
cost
Reduce costs and construction time since no electrical work is needed
Features of portable solar power house (6.6 m2)

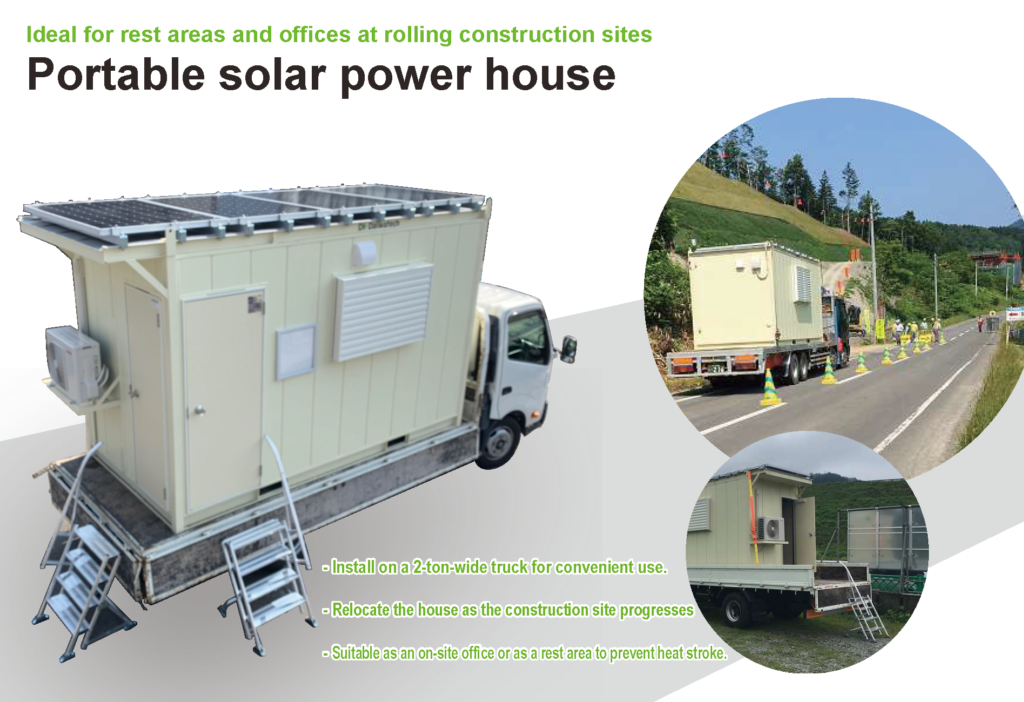

Mobile portable solar power house
The portable solar power house is a compact 6.6 m2 house that can be installed on a 2-ton-wide truck, making it easy to move and use as needed.

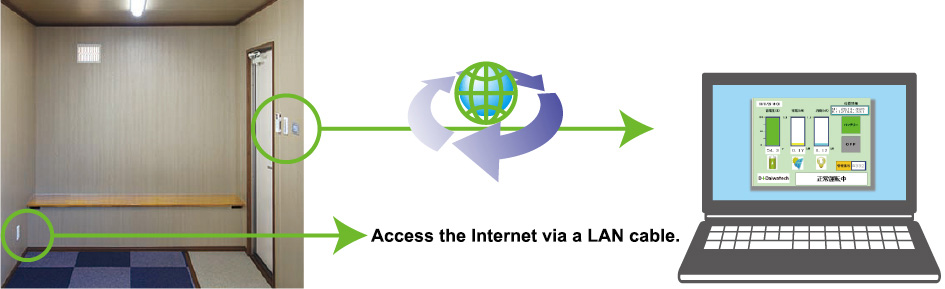

Access the Internet, utilizing the advantages of the house’s solar-powered system
- Even if a power source cannot be secured because the commercial power supply is cut off in an emergency or disaster, the devices that configure each system of the solar power house are supplied power from the solar-powered system’s storage battery, preventing the system from stopping. (Each system continues operating without stopping.)
- The solar power house’s ability to supply power even in a disaster allows Internet access.
Monitor the battery voltage, power generation, and power consumption to ensure smooth operation of the house
- Centralized management and monitoring of measurement data via the Internet enables the understanding and operation of multiple solar power houses located in various areas.
- The power consumption in the house, the battery level, operation state, and power generation can be remotely monitored.
- The GPS function enables precise identification of the installation location.
* The service carrier guarantees the quality of the Internet line, so there may be instances during disasters when the service is unavailable.
The communication bandwidth may increase, and the expected quality may not be achieved depending on the camera’s recording quality (resolution, frame rate).
Safe and quick, simple house—no electrical work is needed, so start using right after installation
Functions and Equipment

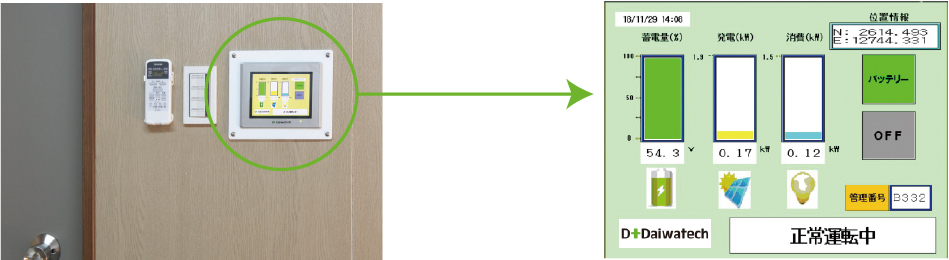

Display unit (LCD screen)
The display unit features a 5.7-inch color LCD screen.
It shows messages when the remaining battery capacity drops to 20% and 5%, respectively.
All power supplies can be turned off to conserve electricity.
The display indicates the power storage amount (%), power generation (kW), and power consumption (kW).
Internet environment
The screen display can be viewed from an external personal computer.
House specifications (6.6 m2 size)
| Outer dimensions | 3,800(W)×1,800(D)×2,680(H) (including solar panels) |
| Surface area | 6.6 m² |
| Weight | 1,500 kg (including solar panels) |
| Insulation | Glass wool |

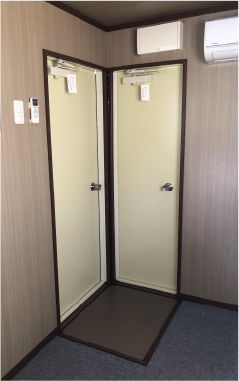

| Fixtures | Steel door, 2 positions |

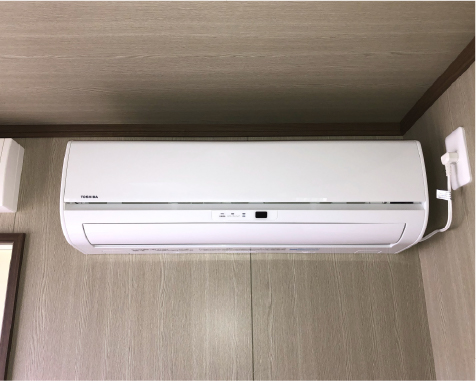

| Equipment | Air conditioner, LED lighting, ventilator, ventilation port, breaker, wall outlet, blinds, LED sign panel, modular jack for LAN connection |
Electrical specifications (6.6 m2 size)
| Maximum solar panel output | １.44 kW |
| Average expected daily power generation | Approx. 4.3 kWh (summer) / approx. 2.5 kWh (winter) |
| Storage battery type | Sealed battery |
| Environmental temperature | -10 to 45°C (with no condensation) |
| AC output | Single-phase 100V, 30A |
| Output waveform | Sine wave |
Options
Exterior wall material (optional)
[Metal siding] Panasonic fluorine bake-finished paint with a 10-year guarantee against rusting and paint discoloration.
* The detailed specifications of the product are subject to change.

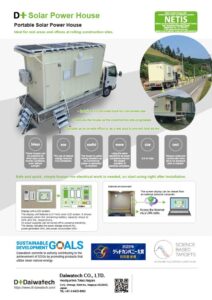

Download
