(1) ECOBO
- 100 VAC power can be used immediately just by placing the ECOBO at the site.
- The 100 VAC can be used to charge weather observation equipment, tools, and electric vehicles. It can also be connected to supply power to prefabricated buildings.
(A qualified electrician is required to connect the electricity to prefabricated buildings, etc.)
Specifications
| Construction | Angular steel tubes, lightweight structural steel |
| Outer dimensions | 1,595(W)×2,480(D)×2,700(H) |
| Surface area | 4.0 m² |
| Weight | 1,710 kg (with condensation prevention agent) |
| Wall material | Exterior walls: Metal siding, Interior walls: Printed plywood |
| Roof | Prepainted steel sheets (with condensation prevention agent) |
| Floor | Prepainted waterproof plywood |
| Insulation | Glass wool |
| Fixtures | Flush door |
| Equipment | Outdoor socket, ventilator, ventilation port |
Electrical specifications
| Maximum solar panel output | 1,035 W |
| Average expected daily power generation | Approx. 4 kWh |
| Cell type | Monocrystalline silicon |
| Controller | Charging management / backflow prevention |
| Solar panel charging method | Single-phase 100V, 7A |
| Storage battery type | Sealed battery |
| Environmental temperature | -10 to 45°C (with no condensation) |
| AC output | Single-phase 100V, 30A |
| Output waveform | Sine wave |
| Frequency | 50/60Hz |
| 100 VAC charging method | Commercial or generator |
(2) UseFul
- UseFul can be used as an auxiliary generator for solar system houses when power generated by ECOBO, etc., is insufficient.
- Simply set up UseFul and connect it to the connector on the solar system house, ECOBO, etc., to increase the power generation amount.
(UseFul may not be compatible with certain models.)

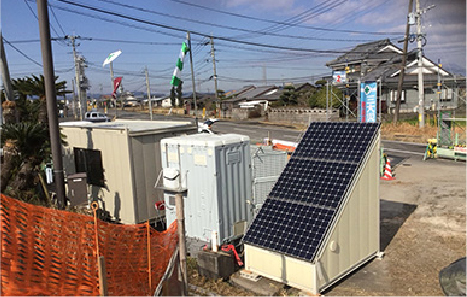

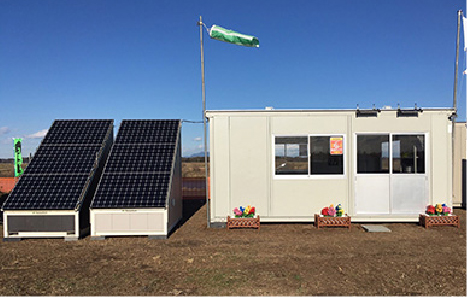

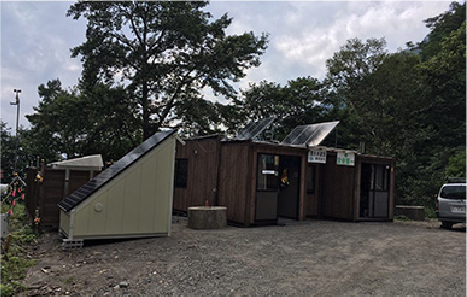

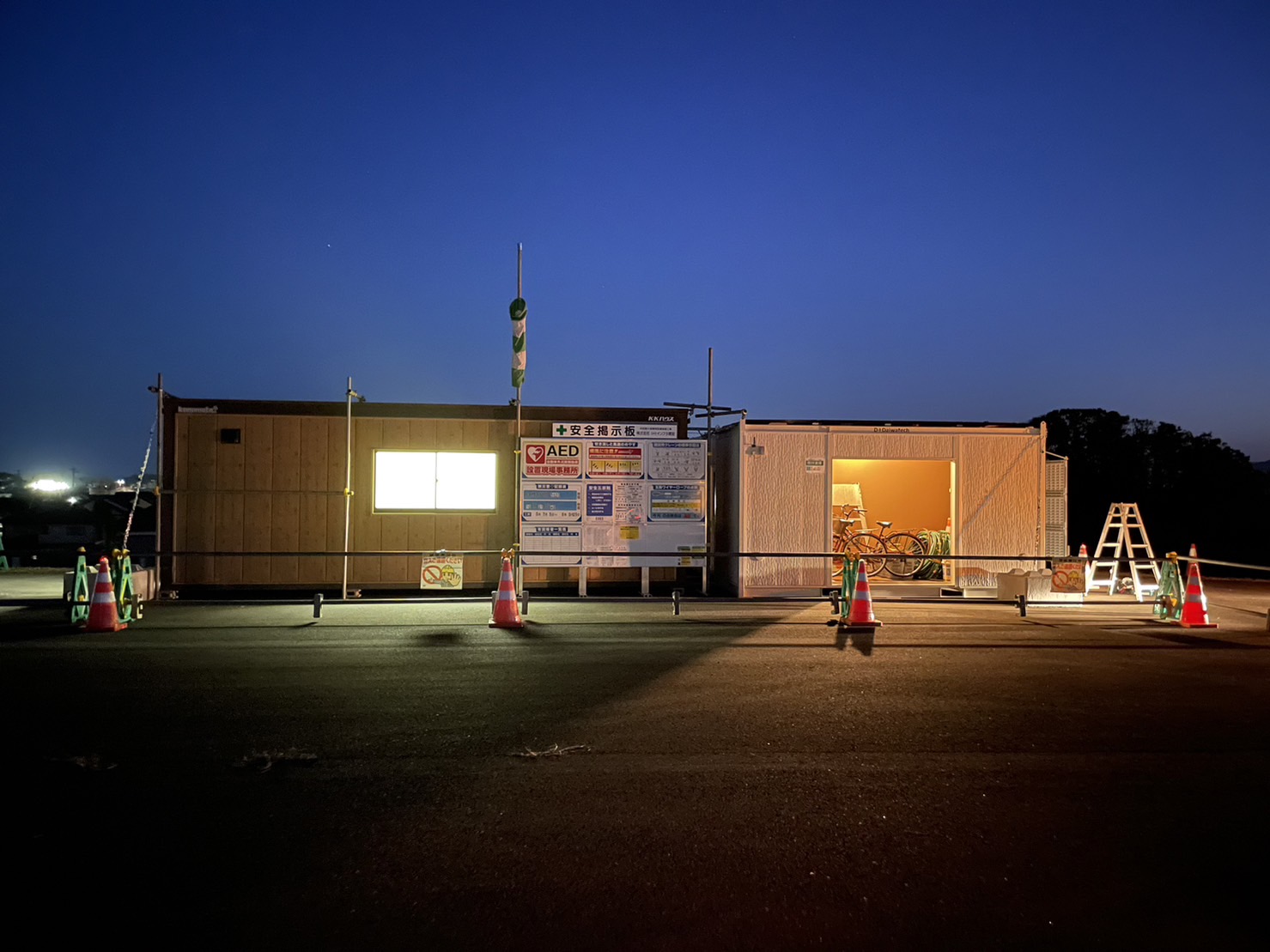

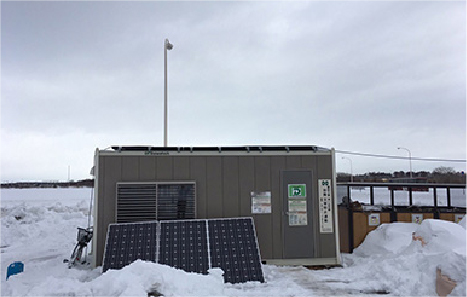

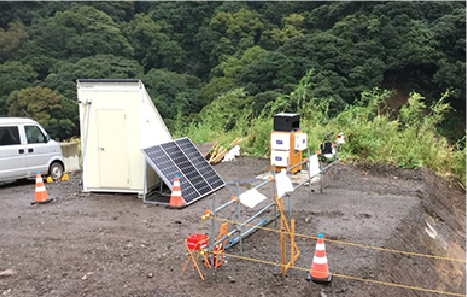

Installation example

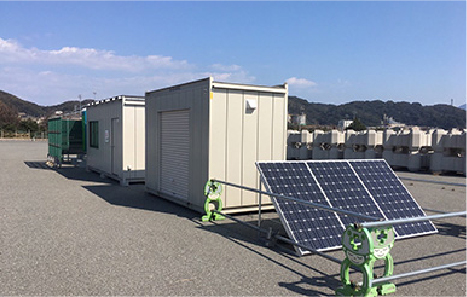

Shuttered Warehouse ECOBO
The shuttered warehouse ECOBO can be used as a power supply for the unit house and as a warehouse.
